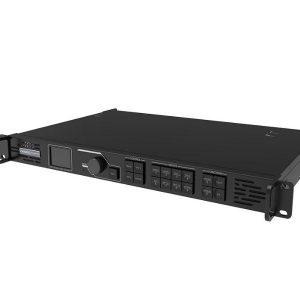

Novastar Controller VX1000

Inputs:

• 2x HDMI 1.4 (max. 3840×1080@60Hz / max.3840×2160@30Hz)
• 2x DVI ((HDMI 1.4)max. 3840×1080@60Hz / max.3840×2160@30Hz)
• 1x 3G-SDI (max. 1920×1080@60Hz)

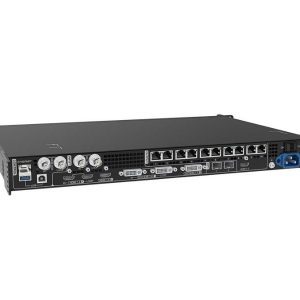

Outputs.

• 10x LED-Out (RJ45)
• 1x HDMI 1.3 Out
• 1x DVI Loop
• 2x OPT-Out (10G)

Further features:

• V-Can Support
• Genlock
• Supports up to 3x layers
• Memory for 10 presets
• Cascading via USB possible
• Display configuration without computer possible
• Control via USB or LAN

General specifications:

• Supply voltage: AC 100-240V, 50/60HZ
• Dimensions: 483.6 x 351.2 x 45mm (WxDxH)
• Power consumption: 28 watts
• Weight: 4kg
