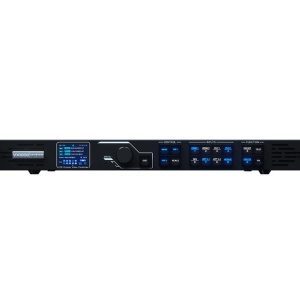

Novastar Controller VX600

Inputs:

• 2x HDMI 1.3 (HDMI-In & Loop) (max. 1920×1200@60Hz), Custom EDID’s possible
• 1x DVI (1920×1200@60Hz, Custom EDID’s possible
• 1x 3G-SDI (max. 1920×1080@60Hz)

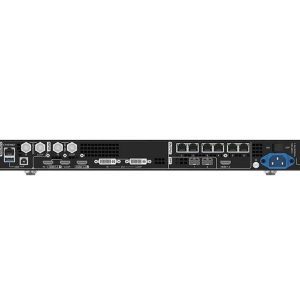

Outputs.

• 6x LED-Out (RJ45)
• 1x HDMI 1.3 Out (fixed resolution of 1920×1080@60Hz when the output is used as monitoring)
• 2x OPT-Out (10G

Further features:

• V-Can Support
• Genlock
• Supports up to 3x layers
• Memory for 10 presets
• Cascading via USB possible
• Display configuration without computer possible
• Control via USB or LAN

General specifications:

• Supply voltage: AC 100-240V, 50/60HZ
• Dimensions: 483.6 x 351.2 x 50.1mm (WxDxH)
• Power consumption: 28 watts
• Weight: 4kg
